- Premium hardware by Sobinco /made in Belgium/
- High performance glass by Guardian glass
- Exceptional finish by Tiger and Axxalta, up to AAMA2605

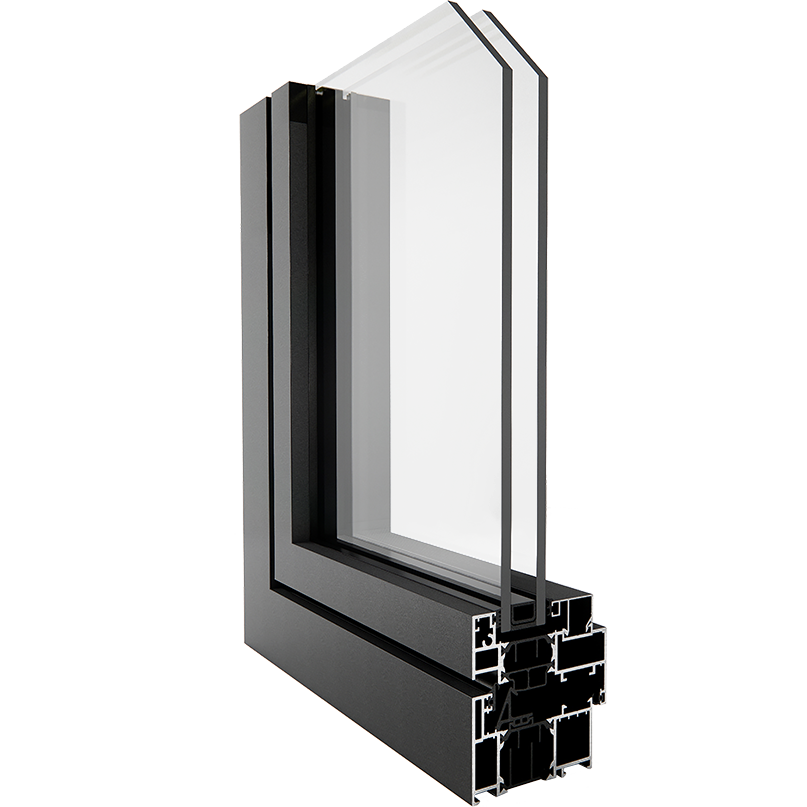

- Heavy gauge aluminium extrusions providing excellent structrural perfomance combined with slim design
- Three EPDM gaskets provide exceptional water and air leacking protection
- Subsil, receptor, reinforcement profiles and multiple sash and frame options for optimal materal selection
- Heights up to 12ft
- Sash weight up to 400lbs
Performance Class | AW100 |
U – Factor | 0.22 – 0.31 |
SHGC | 0.16 – 0.34 |
OITC | 28 – 36 |
STC | 37 – 41 |
Water-Resistant | 12 PSF |
Air Infiltration | 0.01 cfm/ft2 |
Design Pressure | 80PSF |
Opening types
Fixed
Tilt&Turn
Hopper
Awning
Casement

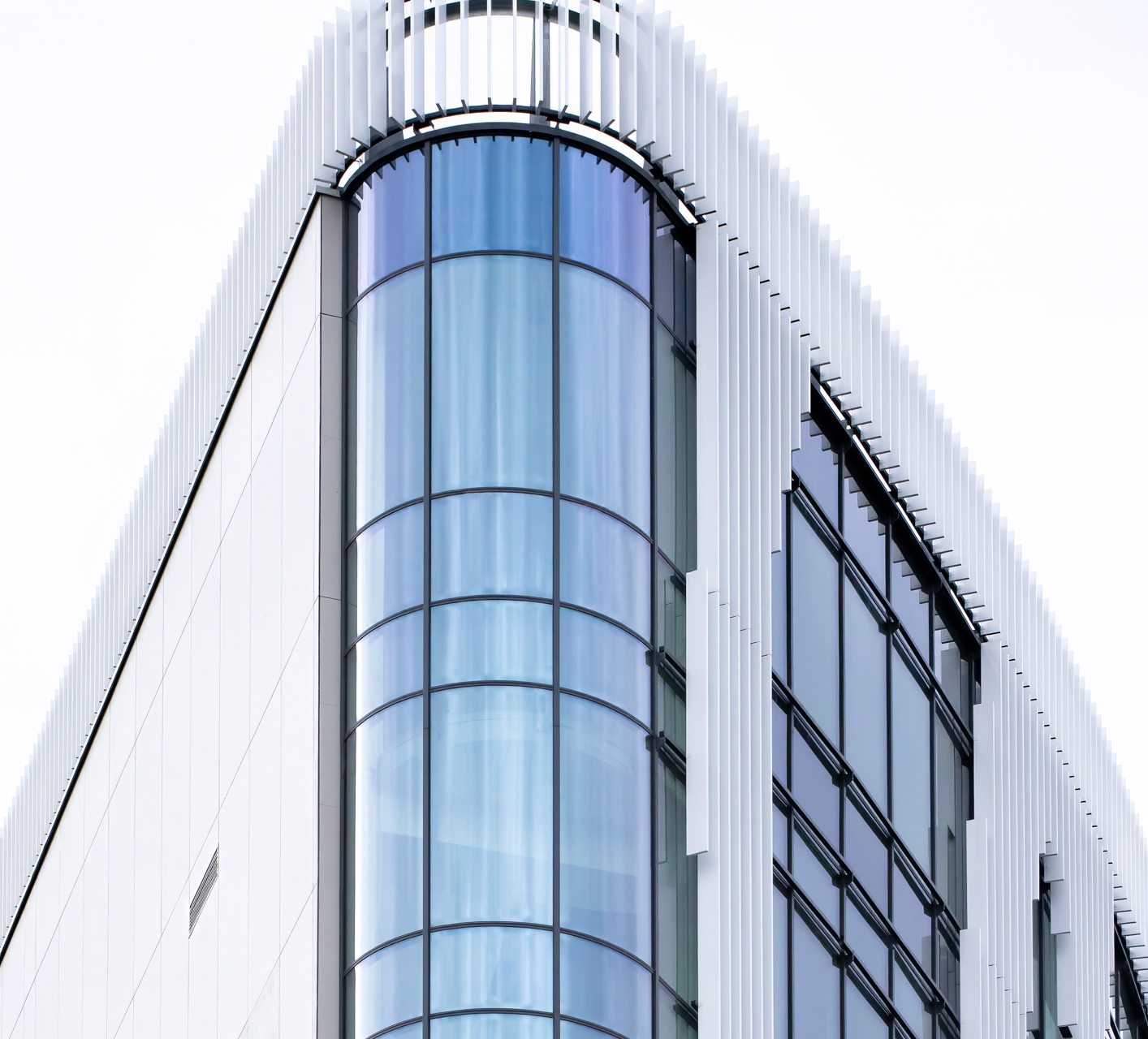

Skywaves
Skywaves is a class-A business building completed with a tripple glazed Reynaers curtain wall. We engineered and manufactured a custom system to attach the decorative elements on the facade and meet the Architect's vision.
